SPRAG One Way Clutch Ratchet for Industrial Machines

Name: SPRAG One Way Clutch Ratchet for Industrial Machines
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: Gibi
Price: 7.10 USD
Availability: InStock

Ürün Ayrıntıları

Menşe yeri: Jiangsu, Çin

Marka adı: SUMA

Model numarası: Gibi

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 2

En İyi Fiyatı Alın

Şimdi iletişime geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            industrial one way clutch ratchet, one way bearing for machines, SPRAG clutch with warranty


Tip:	Sprag	Hassas derecelendirme:	P0
Conta Tipi:	Açık	Kalınlık:	6-26mm
İç çap:	9-80mm	Dış çap:	19-140mm
tork kapasitesi:	2.1-1063nm	Ağırlık:	0.01-1.14kg
Malzeme:	GCR15	Aşırı hızlar:	5000-600 dk-1
Sürükleme torku:	0.18-58 NCM	Eksenel Yanlış Hizalama:	± S/2
Tolerans:	R6 (dış yarış)	Kurulum uyumu:	H7 Konut
Yapı:	Roller tipi Freewheel

Tip:	Sprag
Hassas derecelendirme:	P0
Conta Tipi:	Açık
Kalınlık:	6-26mm
İç çap:	9-80mm
Dış çap:	19-140mm
tork kapasitesi:	2.1-1063nm
Ağırlık:	0.01-1.14kg
Malzeme:	GCR15
Aşırı hızlar:	5000-600 dk-1
Sürükleme torku:	0.18-58 NCM
Eksenel Yanlış Hizalama:	± S/2
Tolerans:	R6 (dış yarış)
Kurulum uyumu:	H7 Konut
Yapı:	Roller tipi Freewheel

Açıklama

SPRAG One Way Clutch Ratchet for Industrial Machines

Ratchet Wheel One Way Clutch Ratchet

Product Specifications

Attribute	Value
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction works, Energy & Mining, Other
Type	SPRAG
Precision Rating	P0
Seals Type	Open
Thickness	6-26mm
Inner diameter	9-80mm
Outer diameter	19-140mm
Torque capacity	2.1-1063Nm
Weight	0.01-1.14kg
Application	Industrial machines
OEM	Accepted
Delivery	5-7 days
Package	Single box or as per requirements

Key Features

Material: GCr15 high-quality bearing steel
Precision engineered for reliable performance
Wide range of sizes available (6-80mm inner diameter)
High torque capacity (2.1-1063Nm)
Lightweight design (0.01-1.14kg)
Suitable for various industrial applications
Multiple packaging options available
Flexible payment terms (TT, L/C, D/A, D/P, Western Union)
Fast delivery (2-4 days for samples, 7 days for bulk orders)

Performance Characteristics

Structure: This star wheel one way ratchet wheel is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must be provided by the installation.

Installation: Typically installed alongside a series 62 bearing within the same location tolerances. The inner race is keyed to the shaft (except 6mm bore).

Tolerance: The outer race has a positive r6 tolerance for press fit in H7 housing. Outer housing must be strong enough to prevent expansion after assembly. Can accept axial misalignment of ± S/2.

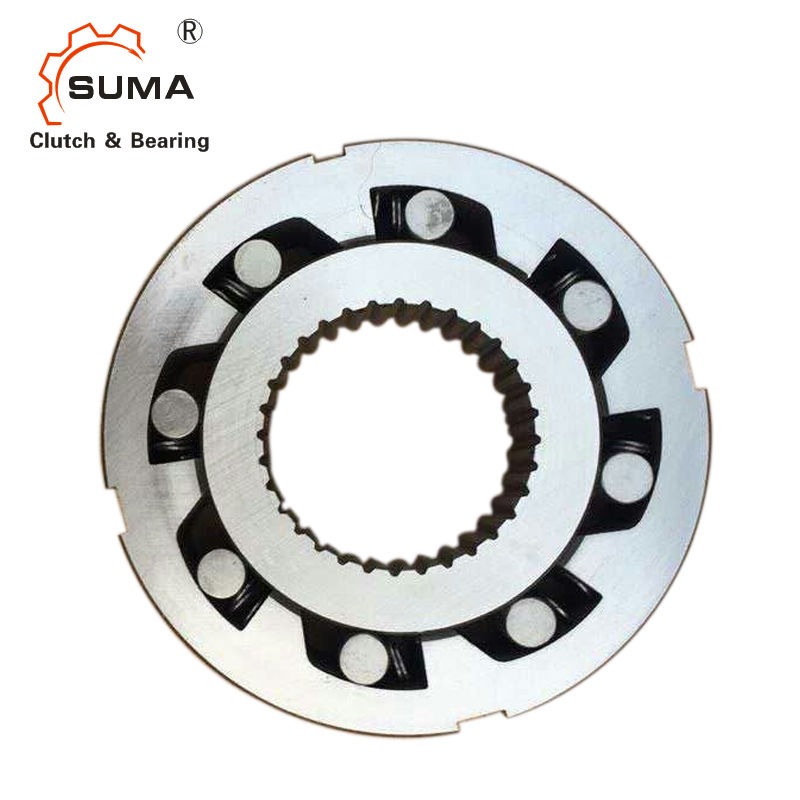

Product Images

Technical Specifications

Type	Size [mm]	TKN1) [Nm]	nimax2) [min-1]	namax3) [min-1]	Dr6 [mm]	D5 [mm]	L [mm]	s [mm]	e [mm]	f [mm]	Weight [kg]	Drag torque TR [Ncm]
Star wheel	6	2.1	5000	7500	19	15.8	6	0.3	0.6	0.3	0.01	0.18
Star wheel	8	3.8	4300	6500	24	20	8	1.3	0.6	0.6	0.02	0.24
Star wheel	10	6.8	3500	5200	30	25.9	9	1.3	0.6	0.6	0.03	0.36
Star wheel	12	13	3200	4800	32	28	10	1.3	0.6	0.6	0.04	0.48
Star wheel	15	14	2800	4300	35	31	11	1.4	0.6	0.6	0.05	0.7
Star wheel	20	40	2200	3300	487	40	14	2.4	0.8	0.8	0.12	1.4
Star wheel	25	56	1900	2900	52	45.9	15	2.4	0.8	0.8	0.14	2.4
Star wheel	30	90	1600	2400	62	55	16	2.4	0.8	1	0.22	7.8
Star wheel	35	143	1300	2000	72	64	17	2.5	0.8	1	0.31	9
Star wheel	40	185	1200	1800	80	72	18	2.5	0.8	1	0.39	10
Star wheel	45	218	1000	1600	85	77	19	2.5	1.2	1	0.44	11
Star wheel	50	230	950	1500	90	82	20	2.5	1.2	1	0.49	13
Star wheel	55	308	800	1300	100	90	21	2.5	1.2	1	0.66	14
Star wheel	60	508	700	1100	110	100	22	2.5	1.2	1.5	0.81	26
Star wheel	80	1063	600	900	140	128	26	2.5	1.2	1.5	1.41	58

Additional Images

Frequently Asked Questions

How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

Yes, we highly encourage customers to request samples for quality verification before placing bulk orders.

Can you promise to deliver the goods in time?

Small items: In stock
Medium Items: 10-15 Days
Big items: 20-25 Days
